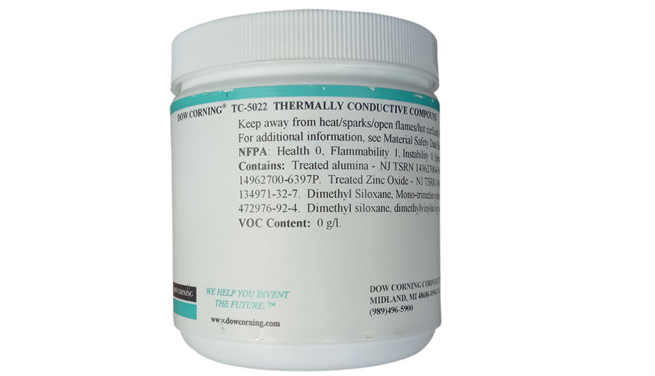

DOW CORNING TC-5022  Heat conductive paste

DOW CORNING TC-5022

Color: gray Overview: 3.30W/m.K thermal conductivity, single component, universal product, with certain thermal conductivity. Product introduction: Dow Corning TC-5021 Insulating Heat Dissipation Adhesive is thermally conductive and flowable. It has a rubber-like adhesive with both thermal conductivity and adhesion functions. It also has a choice of application modes such as thermal conductive materials for perfusion two-component products. Application: CPU heat dissipation transistor PTC heat conduction, heat sink characteristics, heat dissipation paste itself cohesion is strong, can not be separated and used in vacuum without environmental pollution, metal and plastic corrosion, conforms to MIL specifications, low oil release and low volatility, water resistance, self-leveling, color gray, density of 25 degrees Celsius =3.5, volume resistivity = 3.7E+011 ohm-centers, Dynamic viscosity = 102,000 centipoise, temperature range -45 degrees Celsius to200 degrees Celsius, thermal conductivity = 3.3 Wattspermeter, insulation strength =128 volts/mil, general characteristics-less odor Product characteristics: -thermal properties: -low temperature stability, high temperature stability -Compatibility-Plastics, Polyester, Ceramics -stability-oxidation resistance, water resistance, solvent resistance, heat resistance, ozone resistance, UV radiation resistance -Adhesion-Adhesion to FR4, plastic, metal, aluminum, ceramic, primer-free,
